Forms Architecture
This chapter explores the architecture of Forms within the tSM system.
In tSM, Forms are associated with both characteristics and configuration profiles.
- A configuration profile defines a list of characteristics.
- A characteristic defines a specific form.

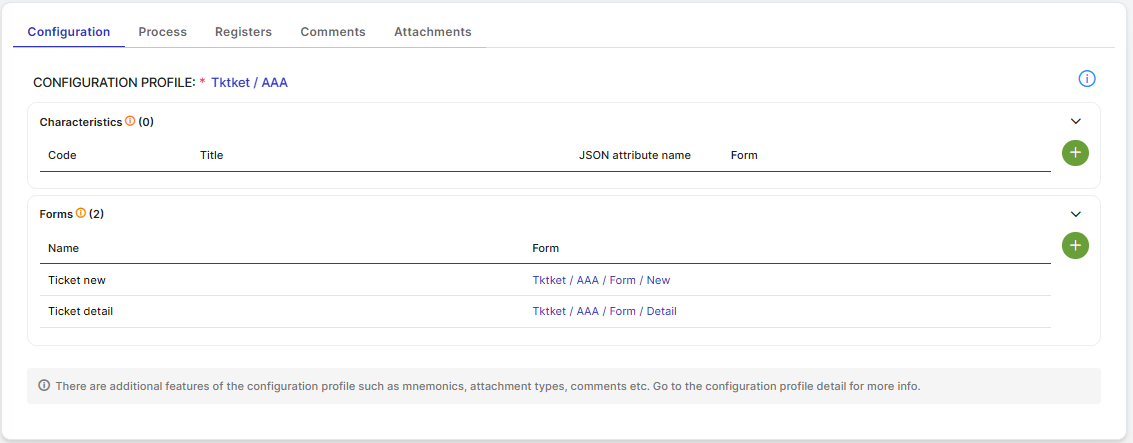

📘 Configuration Profiles
A Configuration Profile (also known as EntitySpecification in the TM Forum model) includes:
- Characteristics – Stored in the
charsattribute, these represent additional data points beyond the core attributes. - FormSpecification – A list of selectors that define which forms are linked to the core attributes.
For more details on tSM entities based on the TM Forum standard, see
TM Forum Entities & Characteristics
Entity Types
Entities that include the entitySpecId attribute are linked to Configuration Profile settings.
For example, the Ticket entity type uses entitySpecId to access its associated configuration.

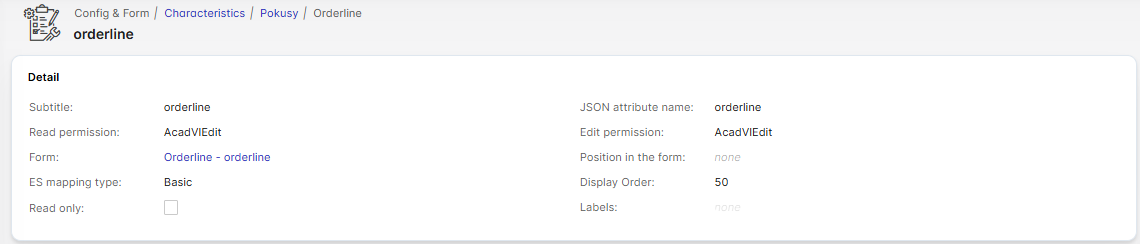

📘 Characteristic
| Property | Description |
|---|---|
| Subtitle | The name of characteristic. |
| JSON attribute name | The key name used in the data model or API to represent this field. |
| Read permission | The permission required to view this field. |
| Edit permission | The permission required to edit this field. |
| Form | Specific form |
| Position in the form (deprecated) | Defines the section or tab in the form UI where this field appears. |
| ES mapping type | Elastic configuration |
| Display Order (deprecated) | Indicates that this field is shown in read-only mode in the UI. |
| Readonly (deprecated) | Indicates that this field readonly |
