Process and Task Model

WFM execution in tSM is process-driven. The scheduler does not operate on isolated tickets; it schedules workforce tasks generated and governed by BPMN processes.

1. Business Meaning

The process layer is used to:

• transform a business work requirement into executable task sequence,
• model serial/parallel realization steps,
• coordinate timers, messages, escalations, and notifications,
• keep execution logic configurable without code changes.

WFM task is a specialized BPMN user task type where assignment is schedule-optimized to concrete time and resource.

2. Process Definition (BPMN/DMN)

tSM uses Camunda-based process engine for WFM orchestration.

Core modeling capabilities:

• BPMN workflow modeling,
• DMN decision modeling,
• process variables and expression evaluation,
• timers and event handling,
• reusable process templates.

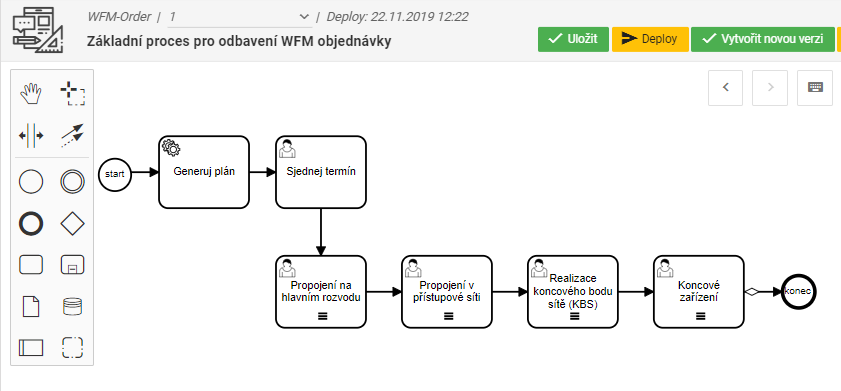

Example process flow for workforce realization:

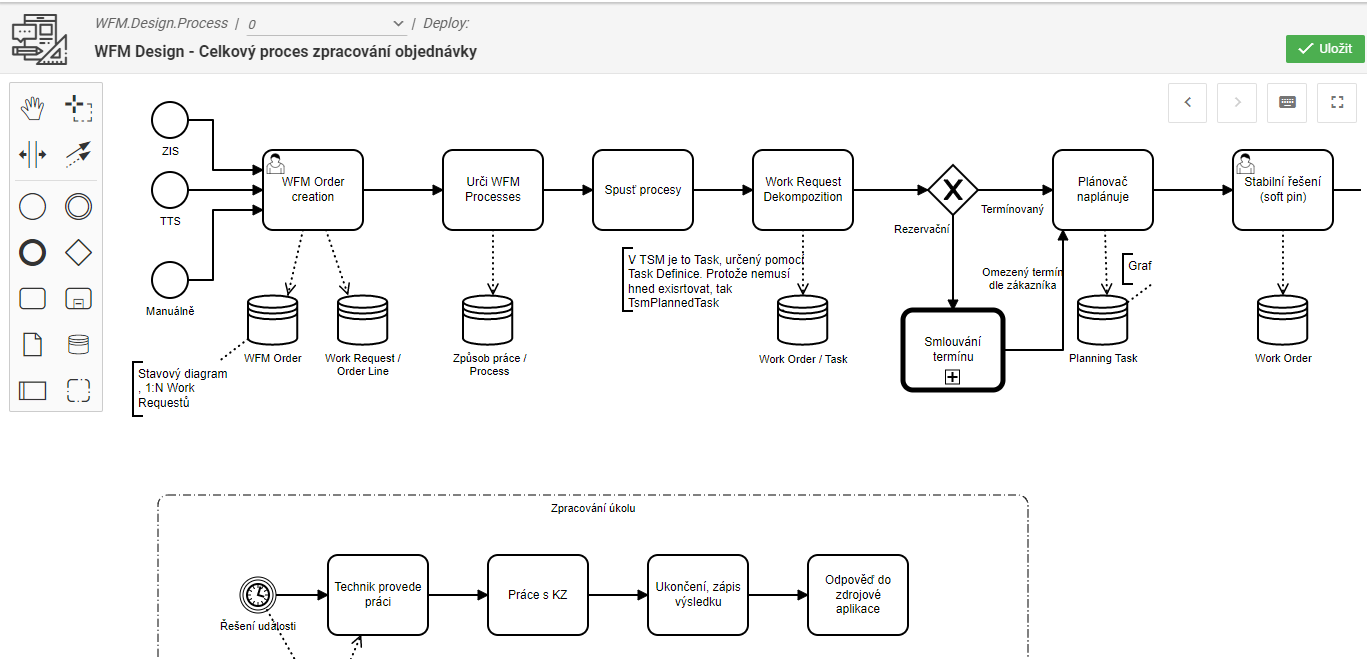

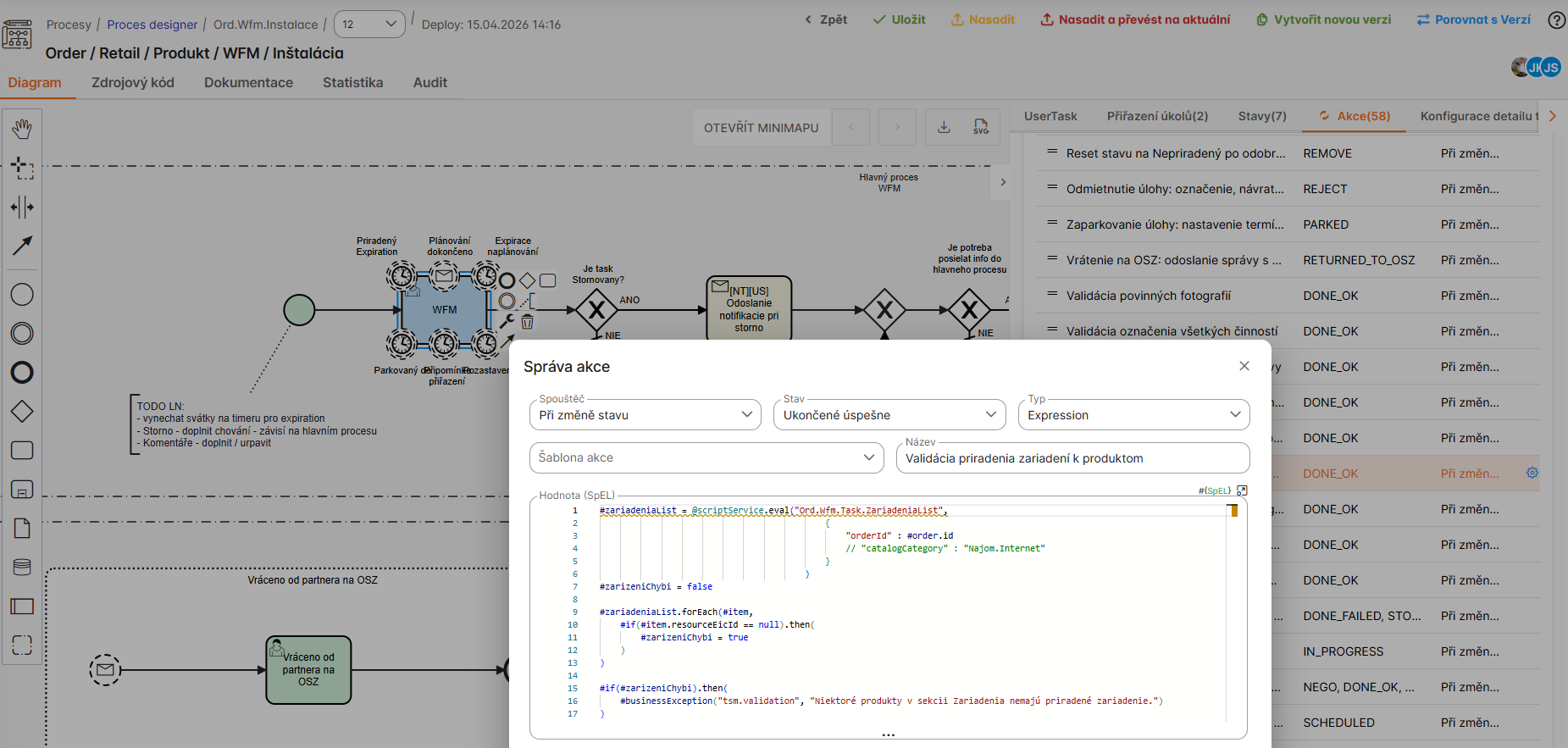

Process modeling and analysis view:

2.1 Typical Execution Pattern

1. Source module creates workforce order.
2. Process selection logic picks one or more process definitions.
3. Process instance creates workforce tasks.
4. Scheduler assigns tasks to resources/time slots.
5. Task completion events drive subsequent process steps.

3. Task Definition Catalog

Task definitions are reusable templates referenced by process models.

Task template usually defines:

• description/instructions,
• required skills,
• planned duration,
• optional expressions resolving values from order context.

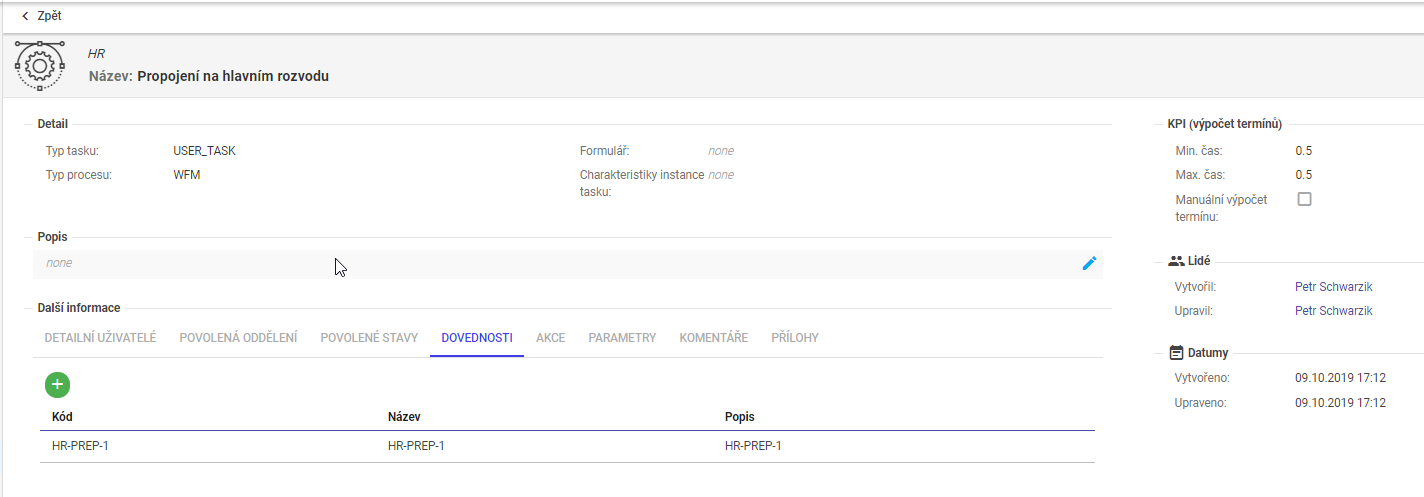

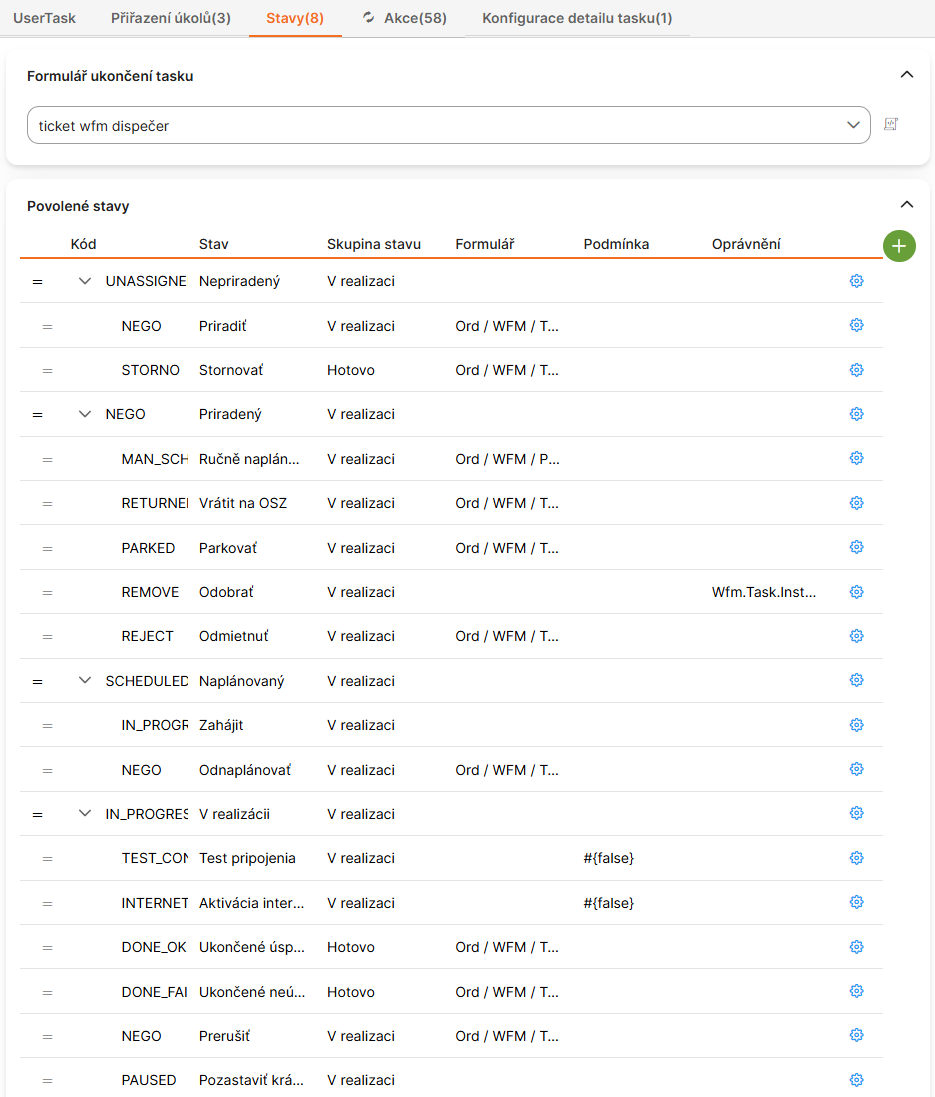

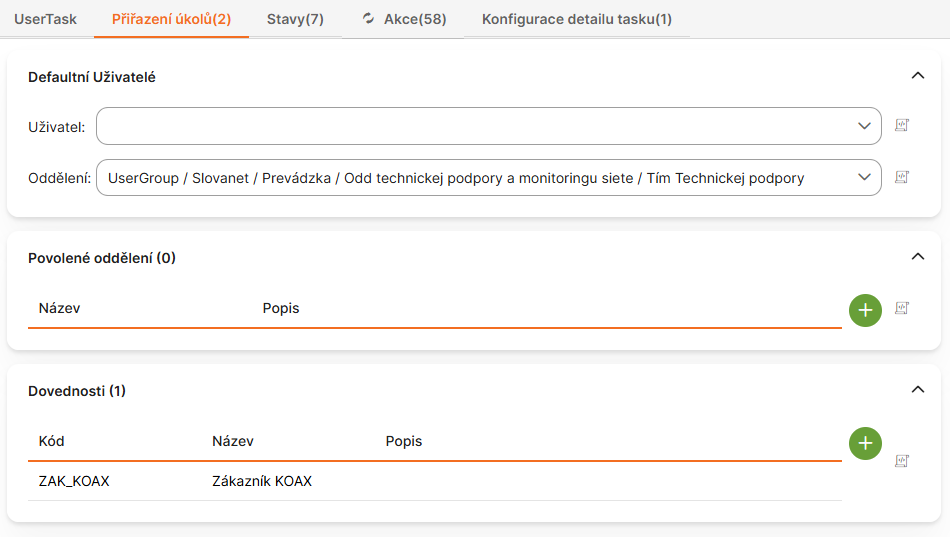

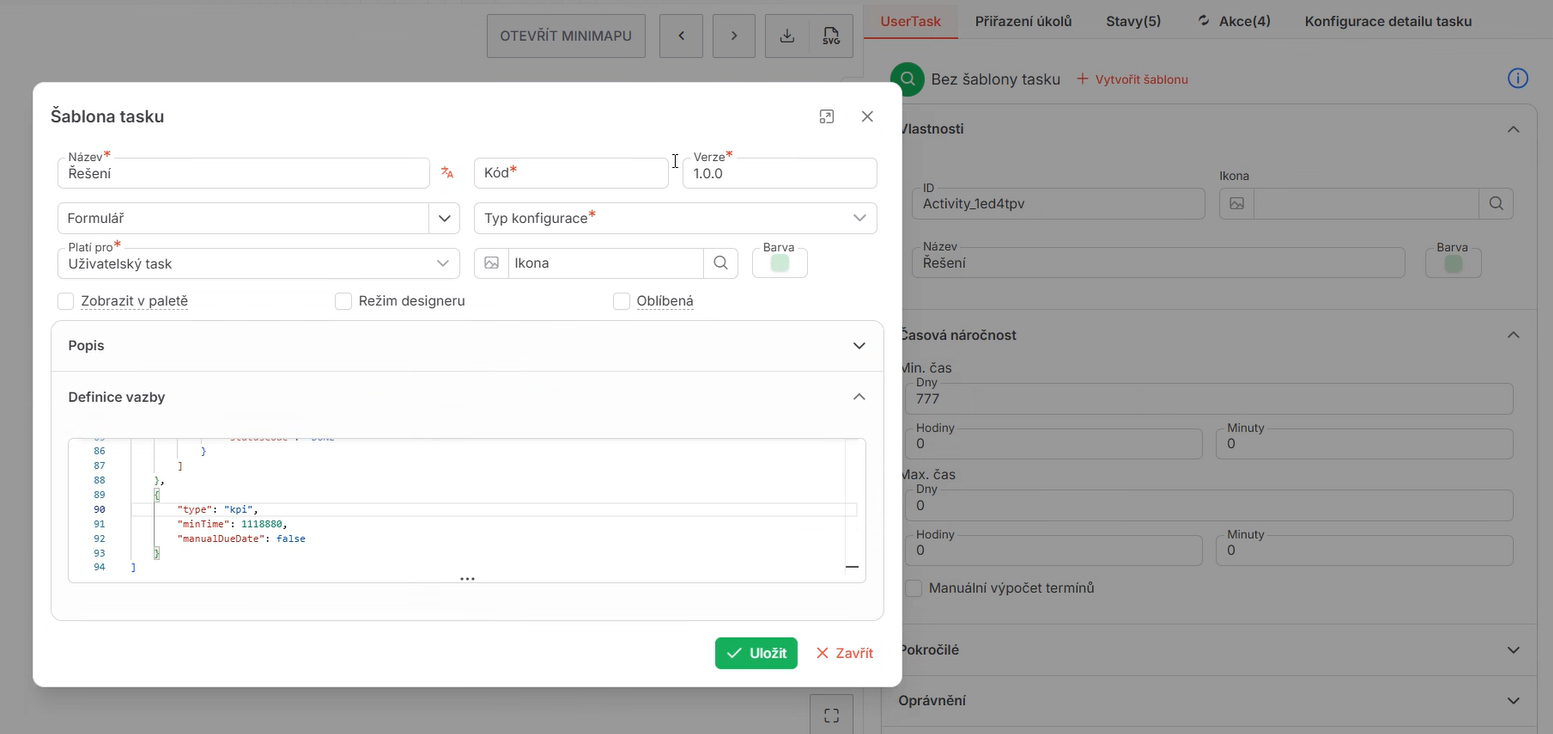

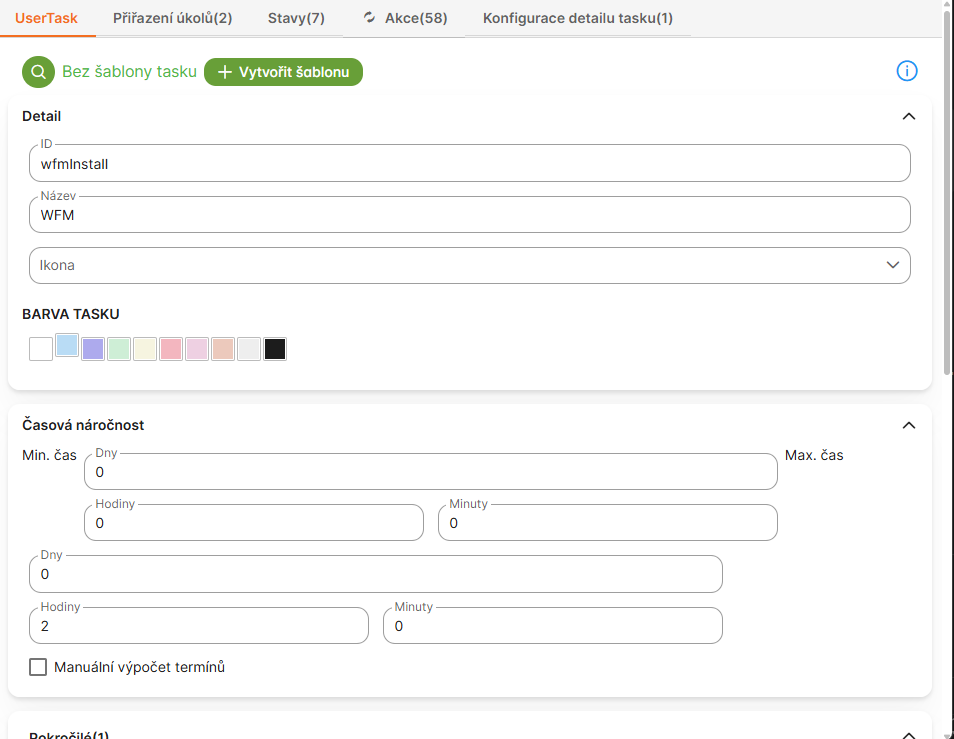

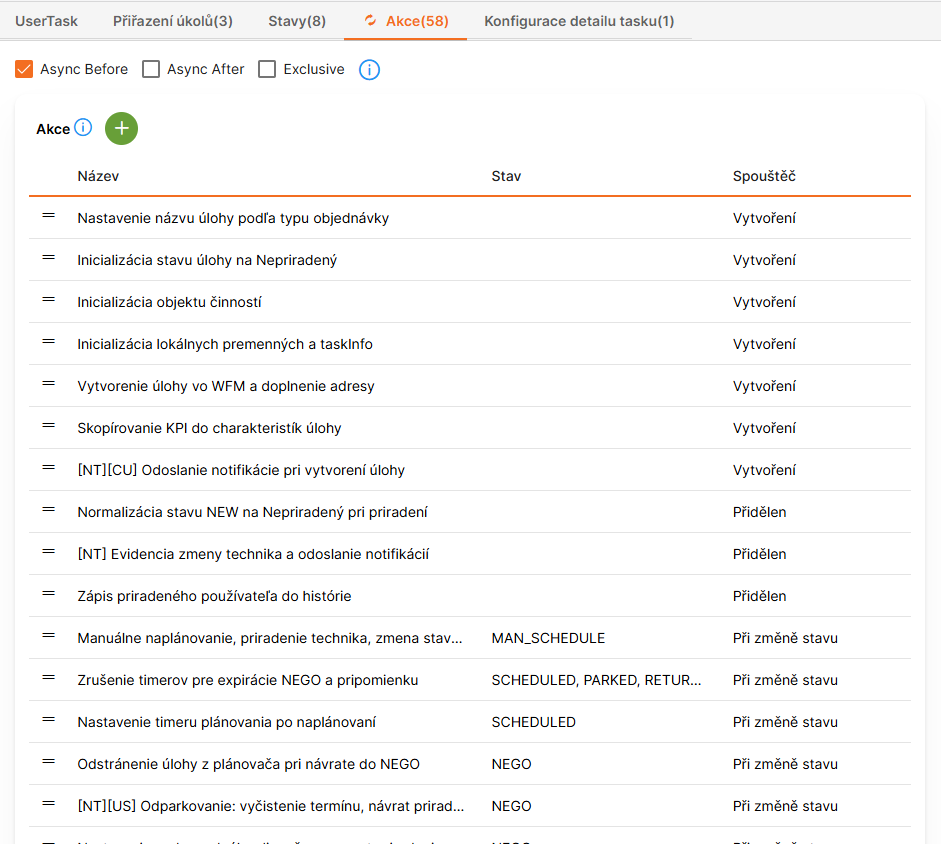

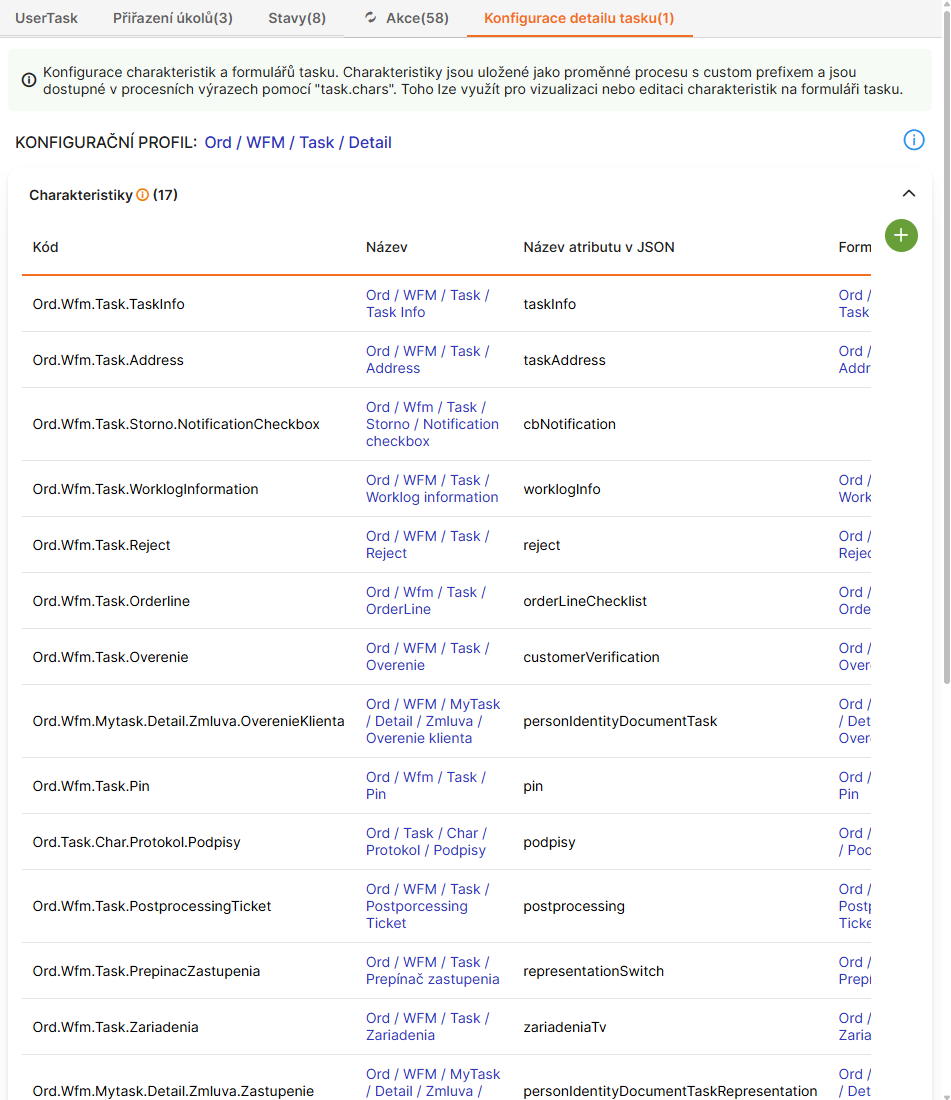

Task definition configuration example:

3.1 Constant vs Expression-driven Attributes

Mode	Example	Usage
Constant	fixed duration = 120 min	Stable operational task
Expression	duration from order parameters	Variable work complexity
Hybrid	base duration + modifiers	Controlled flexibility

4. Workforce Task Sets and Sequencing

WFM processes often model multi-step implementation packages.

Example package pattern (from source material):

• HR MDF wiring,
• PPS switchboard work,
• PRIV last-mile connection,
• KBS endpoint/network termination,
• KZ CPE installation.

Such sets can contain serial dependencies, optional branches, and synchronization points.

5. Process and Scheduler Boundary

• process engine decides logical execution order and state transitions,
• scheduler decides concrete assignment by resource/time/route constraints,
• dispatcher may override or pin decisions when needed.

This separation keeps workflow semantics stable while allowing continuous planning optimization.

6. Practical Governance

• keep process definitions small and composable,
• standardize reusable task templates,
• prefer configuration tables/forms over hardcoded logic,
• version process definitions and activate with explicit lifecycle control,
• test process and scheduling constraints together before production rollout.
