JEXL in tSM

This guide describes JEXL as it is used in the tSM frontend: form configuration, widgets, validations, data-source parameters, small calculations, and Public API lookups.

JEXL in tSM is not full JavaScript. It is an expression language: you usually write one expression, the expression is evaluated against the current context, and the result is used by the field where the expression is configured. Depending on where the expression is used, the result can be interpreted as a boolean, string, number, object, array, validation result, or API request parameter.

This guide is structured as a publishable replacement for the older single JEXL guide. It keeps the topics from the existing tSM JEXL documentation, adds current runtime helpers from the frontend, and uses realistic form-oriented examples. Deprecated helpers are kept only as compatibility notes, not as recommended patterns.

What Exactly Is tSM JEXL?

tSM JEXL is the frontend expression language used by forms, widgets, data sources, and UI-level configuration. It is designed for short, context-aware expressions that make the UI react to the current entity, current form state, logged-in user, and runtime configuration.

It combines:

• JavaScript-like literals, operators, arrays, objects, and arrow functions,
• a curated set of helper functions registered by tSM modules,
• context variables such as $context, $value, $row, and $configUi,
• data-source calls such as evalScriptByCode(...), attachmentCount(...), and tsmModule(...),
• Public API calls such as crm.customer.find(...).

JEXL runs in the browser-side form/runtime context. Use it for UI behavior and lightweight data shaping. Use SpEL for backend automation, transactions, process logic, and server-side integration logic.

Guide Map

Read the guide in this order:

Page	Focus
Overview	What JEXL is, where to use it, and how to debug expressions.
Evaluation And Context	How expressions are evaluated and which context variables are available.
Syntax	Literals, comparisons, fallbacks, ternaries, functions, arrays, lambdas.
Practical Patterns	Everyday UI patterns and real examples from current tSM forms.
Runtime And Public API	Helper calls, script calls, Public API calls, filter operators, JEXL vs SpEL.
Functions: Date And Time	Date/time helpers.
Functions: Arrays And Objects	Array, object, map, filter, find, and transformation helpers.
Functions: Strings	String conversion, splitting, joining, replacing, and formatting helpers.
Functions: Numbers And Validations	Numeric helpers plus validators such as email, UUID, BAN, and national ID.
Functions: Runtime Utilities	User, privilege, attachment, script, location, module, and runtime helpers.
Practices And Cheat Sheet	Recommended practices, common mistakes, quick lookup table.

When To Use JEXL

Use JEXL when you need to:

• show or hide a field based on form values,
• enable, disable, or require a field dynamically,
• calculate a default or derived value,
• build a parameter for a widget or data source,
• filter, map, or summarize form data,
• implement a custom validation,
• call tSM Public API from a UI expression,
• format dates, numbers, or strings.

Typical places where JEXL is used:

• widget properties such as Hidden, Disabled, Required,
• Default value or computed value fields,
• data-source configuration fields,
• Custom Validation,
• transformation fields in form or page configuration.

Running And Debugging

Opening The JEXL Console

The JEXL console is available from forms and pages where the runtime can expose the current form/entity context. Open it from the debug icon or page/form menu, depending on the application shell and permissions.

Use the console when:

• you need to inspect the real $context available on a page,
• an expression works in one form but not another,
• a value is unexpectedly null,
• you are not sure whether helper syntax or method syntax is available,
• a Public API or data-source call returns an unexpected shape.

What To Test First

Start with the smallest expression that proves the context shape:

$context.form

$context.entity

Then test the exact field:

$context.form.productInternet

Then test the final expression:

$context.form.productInternet
  ? $context.form.productInternet.name
  : null

Debugging Checklist

Symptom	First thing to check
Expression returns nothing	Verify the exact context path in the JEXL console.
TypeError: functions.keys is not a function	keys(...) is not registered; build an explicit array or add a helper.
Dynamic access does not work	$context.form[key] may not be supported; use explicit property access.
API call is slow	Check whether the expression is evaluated too often.
Validation behaves reversed	Confirm whether true means valid or invalid in that validation slot.
Array lambda fails	Try the helper form, for example filter(items, 'status', 'ACTIVE').

Form Configuration Screens

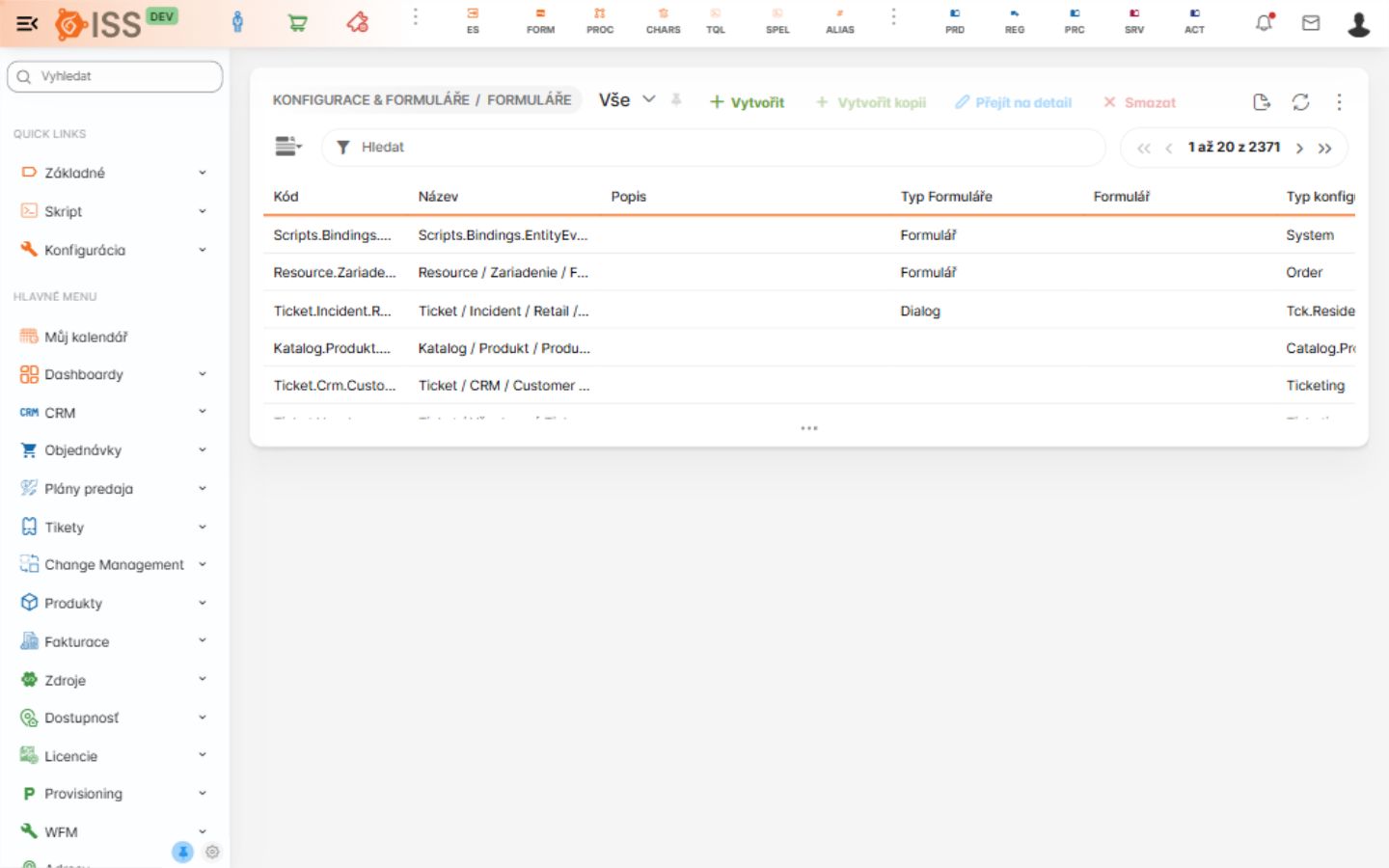

JEXL expressions are most often maintained from form configuration. Open Configuration -> Forms, search for the form code, and then open the form detail.

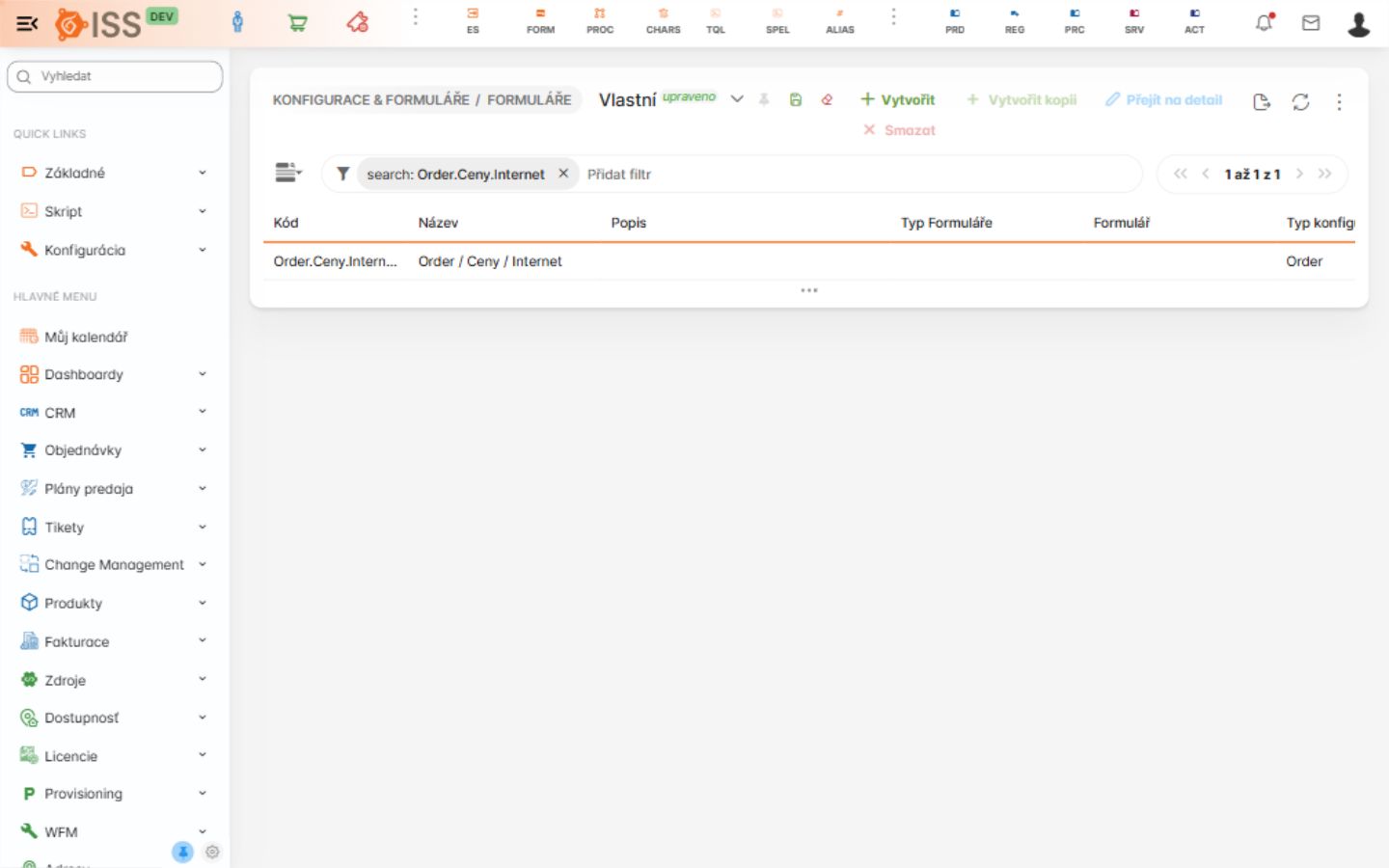

When the form code is known, filter the listing directly. This is the fastest way to reach the exact form that contains the expression you need to inspect.

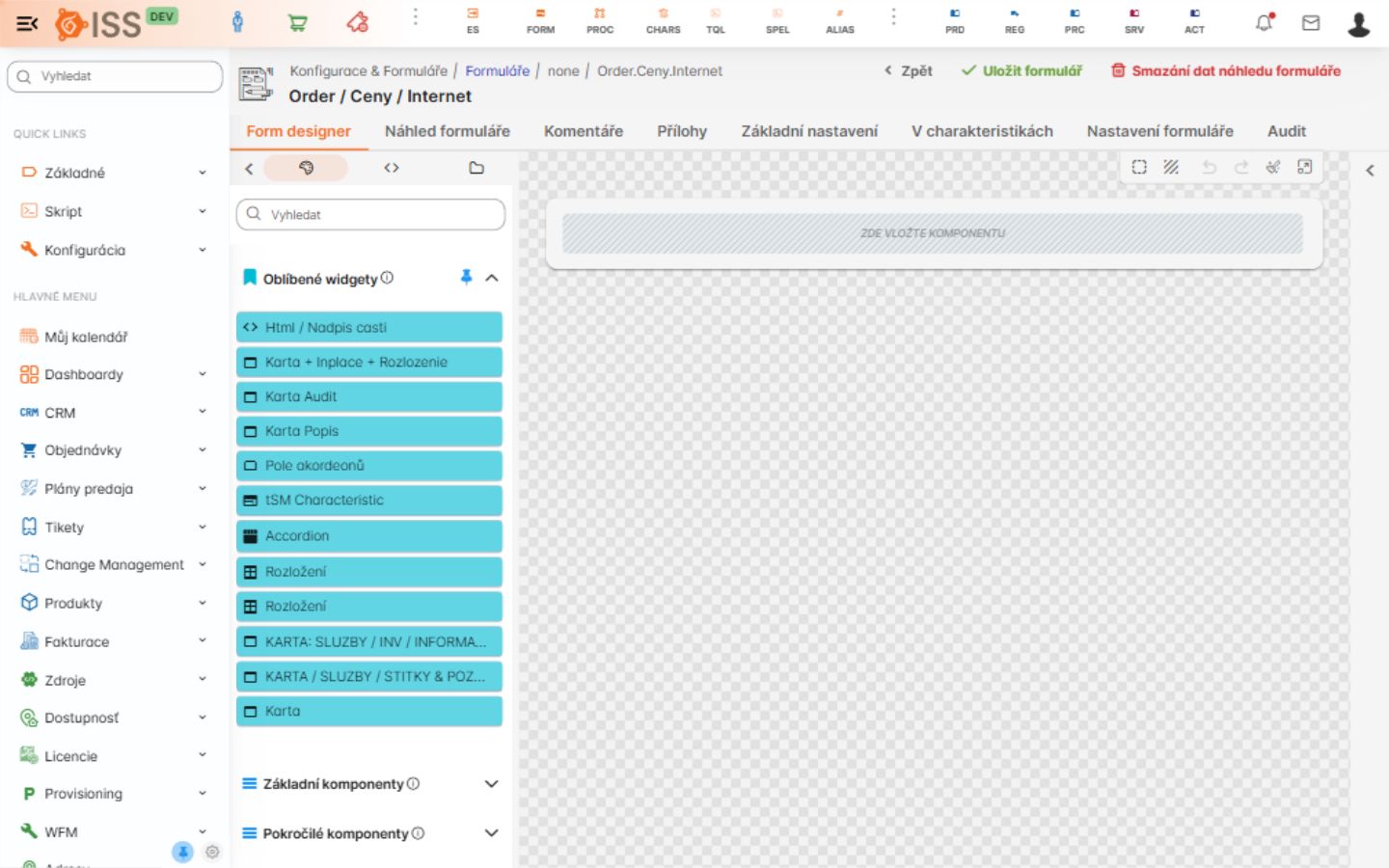

The form detail contains the form designer, preview, settings, characteristics, attachments, comments, and audit tabs. JEXL expressions are usually configured on components in the designer or in field/widget properties.
